CNC Routers for Mould Making
3-Axis · 5-Axis · Non-Metallic & Metal — Compact Patterns to 12 m Tooling
At A Glance
Operations Performed
Full Specifications
BS / SF Series — Non-Metallic Mould 3-Axis (Wood · EPS · Foam · Fibreglass)
| Specification | BS1325 | BS2030 | SF3015 | SF4020 | SF5030 | SF5030 |
|---|---|---|---|---|---|---|
| X stroke (mm) | 1,300 | 2,000 | 3,000 | 4,000 | 5,000 | 7,000 |
| Y stroke (mm) | 2,500 | 3,000 | 1,500 | 2,000 | 3,000 | 5,000 |
| Z stroke (mm) | 600 | 1,000 | 800 | 1,000 | 1,200 | 1,500 |
| Work table size (mm) | 1,300 × 2,500 | 2,000 × 3,000 | 1,500 × 3,000 | 2,000 × 4,000 | 3,000 × 5,000 | 5,000 × 7,000 |
| Work table load (T) | 1.6 | 2.4 | 1.8 | 4 | 7.5 | 17.5 |
| Max rapid speed X/Y/Z (m/min) | 40 / 40 / 15 | 40 / 40 / 15 | 55 / 55 / 20 | 55 / 55 / 20 | 55 / 55 / 20 | 55 / 55 / 20 |
| Spindle type | Electric spindle 24,000 rpm | BT40 mechanical 20,000 rpm | BT40 mechanical 10,000 rpm | BT40 mechanical 10,000 rpm | BT40 mechanical 10,000 rpm | BT50 mechanical 8,000 rpm |
| Spindle motor power (kW) | 9 | 7.5 | 5.5 | 5.5 | 5.5 | 7.5 |
| Positioning accuracy X/Y/Z (mm/m) | 0.07 / 0.05 / 0.03 | 0.07 / 0.05 / 0.03 | 0.05 / 0.03 / 0.02 | 0.05 / 0.03 / 0.02 | 0.05 / 0.03 / 0.02 | 0.05 / 0.03 / 0.02 |
| Repeatability X/Y/Z (mm/m) | 0.05 / 0.03 / 0.02 | 0.05 / 0.03 / 0.02 | 0.03 / 0.02 / 0.01 | 0.03 / 0.02 / 0.01 | 0.03 / 0.02 / 0.01 | 0.03 / 0.02 / 0.01 |
SM Series — Soft-Metal & Metal Mould 3-Axis (Aluminium · Cast Iron · Brass)
| Specification | SM2020 | SM2520 | SM3020 | SM4020 | SM3025 |
|---|---|---|---|---|---|
| X stroke (mm) | 2,000 | 2,500 | 3,000 | 3,000 | 3,000 |
| Y stroke (mm) | 2,000 | 2,000 | 2,000 | 2,000 | 2,500 |
| Z stroke (mm) | 600 / 800 | 600 / 800 | 600 / 800 | 600 / 800 | 600 / 800 / 1,000 |
| Work table size (mm) | 2,000 × 2,000 | 2,500 × 2,000 | 3,000 × 2,000 | 4,000 × 2,000 | 3,000 × 2,500 |
| Work table load (T) | 2 | 2.5 | 4 | 4 | 4 |
| Max rapid speed X/Y/Z (m/min) | 35 / 35 / 12 | 35 / 35 / 12 | 35 / 35 / 12 | 35 / 35 / 12 | 35 / 35 / 12 |
| Spindle speed (rpm) | 12,000 | 12,000 | 12,000 | 12,000 | 12,000 |
| Spindle motor power (kW) | 10 | 10 | 10 | 10 | 10 |
| Spindle torque (N·m) | 47.8 | 47.8 | 47.8 | 47.8 | 47.8 |
| Spindle cone | BT40 | BT40 | BT40 | BT40 | BT40 |
| Tool magazine | 12T | 12T | 12T | 12T | 12T |
| Positioning accuracy X/Y/Z (mm/m) | 0.025 / 0.025 / 0.015 | 0.027 / 0.025 / 0.015 | 0.028 / 0.025 / 0.015 | 0.031 / 0.025 / 0.015 | 0.028 / 0.027 / 0.015 |
| Repeatability X/Y/Z (mm/m) | 0.013 / 0.013 / 0.010 | 0.015 / 0.013 / 0.010 | 0.016 / 0.013 / 0.010 | 0.019 / 0.013 / 0.010 | 0.016 / 0.015 / 0.010 |
5-Axis Linkage Machining Centres
| Specification | BS2513-5S (Table-Move) | SF35120-5S (Portal) |
|---|---|---|
| X stroke (mm) | 3,450 | 12,000 |
| Y stroke (mm) | 2,150 | 3,500 |
| Z stroke (mm) | 1,200 | 2000 |
| 5-axis working size X/Y/Z (mm) | 2,500 × 1,300 × 800 | 11,000 × 2,500 × 1,600 |
| A axis | ±120° | ±120° |
| C axis | ±360° | ±360° |
| Drive type | XYZ all ball screws | XY incline rack & pinion · Z ball screws |
| Work table type | Steel or Vacuum | Portal (no table — work fixed to floor) |
| Max working speed X/Y/Z (m/min) | 30 / 30 / 10 | 40 / 40 / 10 |
| Max rapid speed X/Y/Z (m/min) | 60 / 60 / 20 | 60 / 60 / 20 |
| Spindle | Italy HITECO 15 kW HSK63F · 24,000 rpm | Italy HITECO 15 kW HSK63F · 24,000 rpm |
| Positioning accuracy X/Y/Z (mm/m) | 0.025 / 0.025 / 0.025 | 0.03 / 0.03 / 0.03 |
| Repeatability X/Y/Z (mm/m) | 0.01 / 0.01 / 0.01 | 0.02 / 0.02 / 0.02 |
| Total power (kVA) | 38 | 42 |
| Gross weight (T) | 10 | 30 |
Standard Features Optional Equipment
Standard Features
- Taiwan-built BT40 / BT50 mechanical spindle (BS / SF / SM series)
- Italy HITECO 15 kW HSK63F high-speed spindle (5-axis variants)
- Taiwan linear guide rails on X / Y / Z (all variants)
- Pre-stretched high-precision ball screws (XYZ on 3-axis; XY+Z on 5-axis)
- Roller-type linear guides on SM series (for metal-cutting rigidity)
- Z-axis hydraulic balance system
- Servo-driven axes (AC servo drive)
- Constant-temperature drive system (SM series)
- Cabinet cooling + spindle cooling system
- Pneumatic & centralised lubrication system
- Tricolor signal tower + lighting
- Equipment pads & leveling bolts
- Standard accessories & related documents
- Common maintenance toolkit
Optional Equipment
- Automatic tool change magazine — 8T (BS/SF & 5-axis) or 12T (SM)
- 4th rotary axis (turntable indexer)
- Safety light curtain + full around-protection guarding
- Direct-connect BT50-8000 mechanical spindle (BS/SF upgrade)
- Direct-connect BT40-15000 mechanical spindle (SM upgrade)
- Centre-outlet (coolant-through) spindle (SM upgrade)
- Anti-backlash function
- H/L type rotate 5-axis head (5-axis variants)
- Vacuum work table (5-axis variants)
- Chip removal system — screw + chain (SM standard, optional on others)
- CNC control upgrade options: FANUC OiMF Plus · Siemens 828 · Taiwan Syntec 610MA-E5
Typical Workpieces
Frequently Asked Questions
Which series should I pick for my pattern / mould material?
Match by material. For wood, EPS foam, lost-foam patterns, foam, fibreglass and other non-metallic substrates — choose the BS or SF series (3-axis), with bed size from 1.3 × 2.5 m up to 5 × 7 m. For soft metals (aluminium, brass) and cast iron / steel mould blocks — choose the SM series (3-axis) with BT40 spindle, 12 kW, and roller guides for rigidity. For complex 3D surfaces, 5-sided machining of large mould blocks, or any application needing simultaneous 5-axis motion — choose BS2513-5S (table-move, up to 2,500 × 1,300 × 800 mm) or SF35120-5S (portal, up to 11,000 × 2,500 × 1,600 mm).
What is the difference between table-move and portal 5-axis?

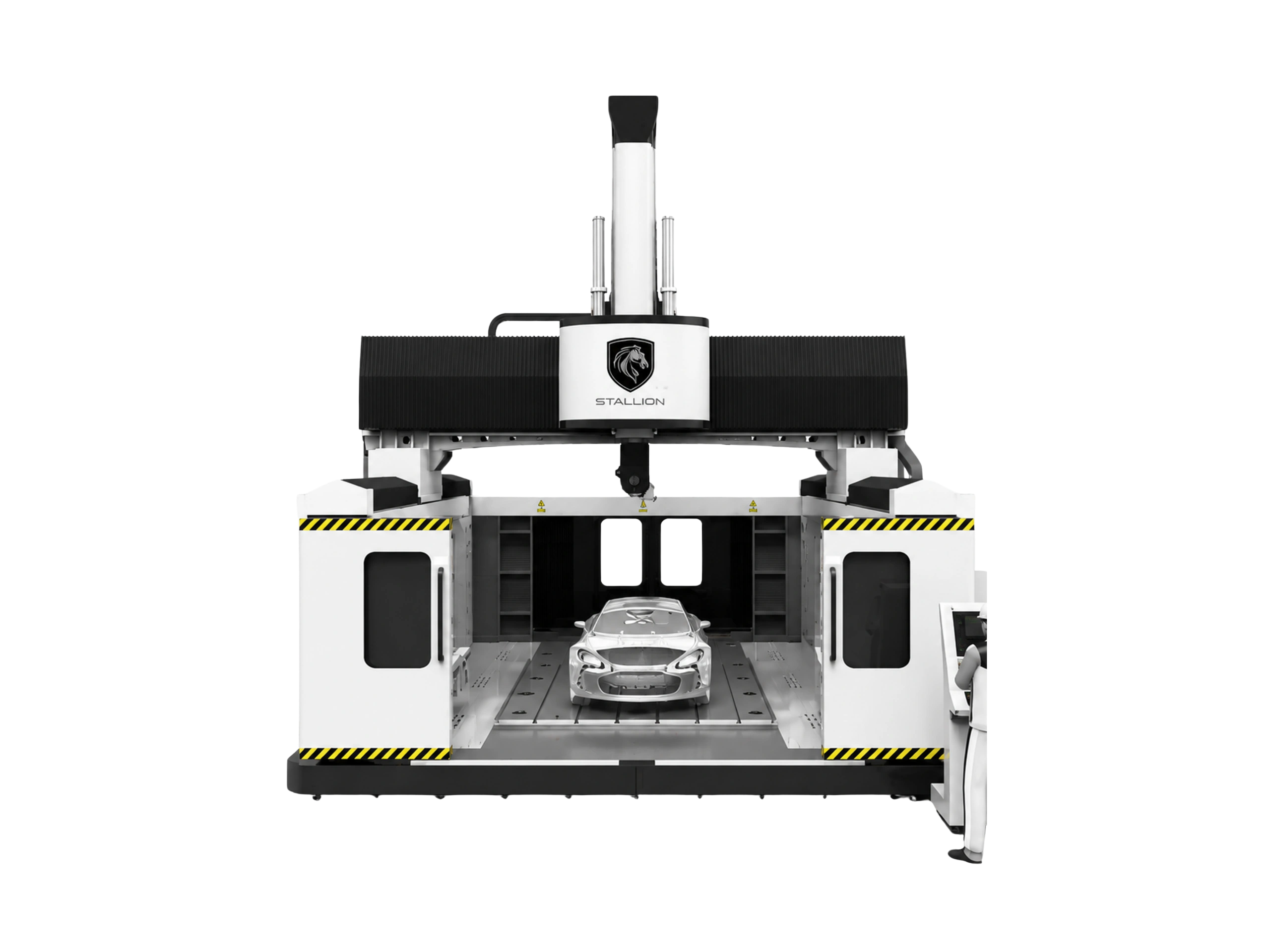

Table-move 5-axis (BS2513-5S) moves the workpiece on the table while the gantry and spindle stay fixed in plan — suited to medium parts where the spindle column can be a heavy fixed structure. Portal 5-axis (SF35120-5S) has the gantry move over a fixed work surface — used for very large mould blocks (up to 11 m) that cannot practically be moved on a table. Portal is the only option above roughly 5 m part length.
Can I choose between FANUC, Siemens and Syntec CNC controls?
Yes. The SM and 5-axis platforms support FANUC OiMF Plus, Siemens 828 and Taiwan Syntec 610MA-E5 as control options — the choice is typically driven by the operator's existing programming environment and post-processor library. The CNC selection is made at order time; mid-life upgrades from one control family to another are possible but require substantial cabinet rework.
What is the largest mould I can machine on a single machine?

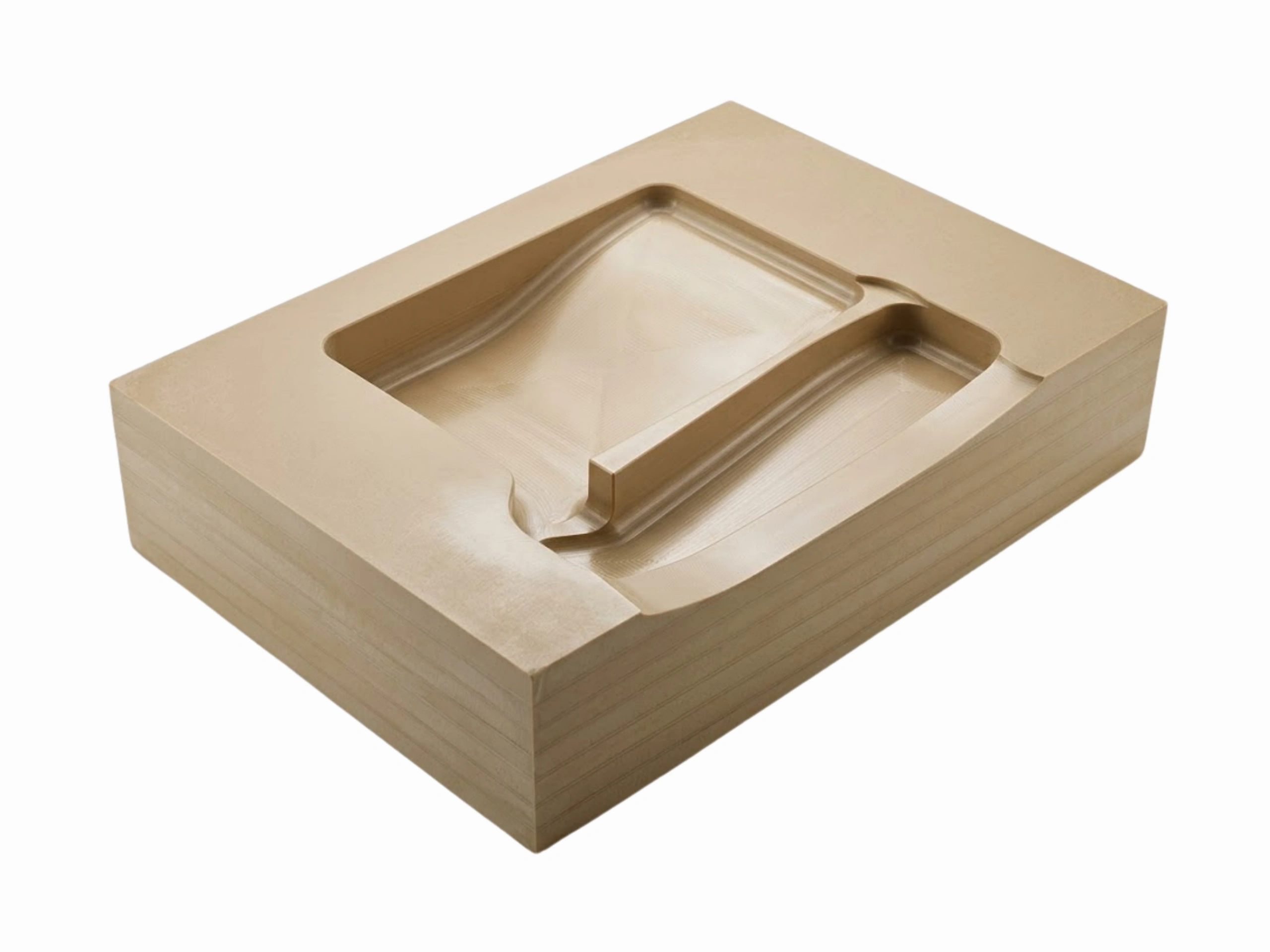

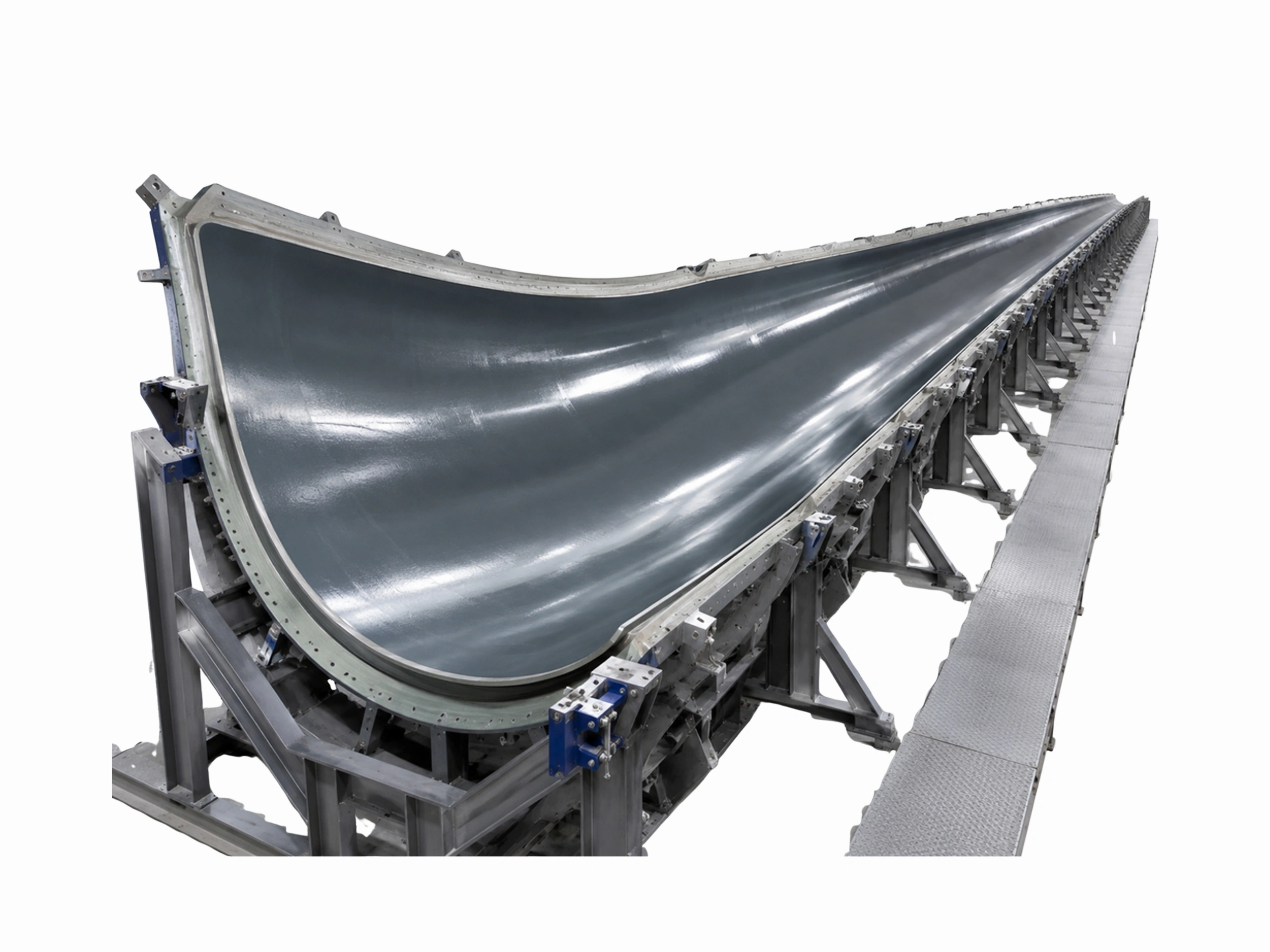

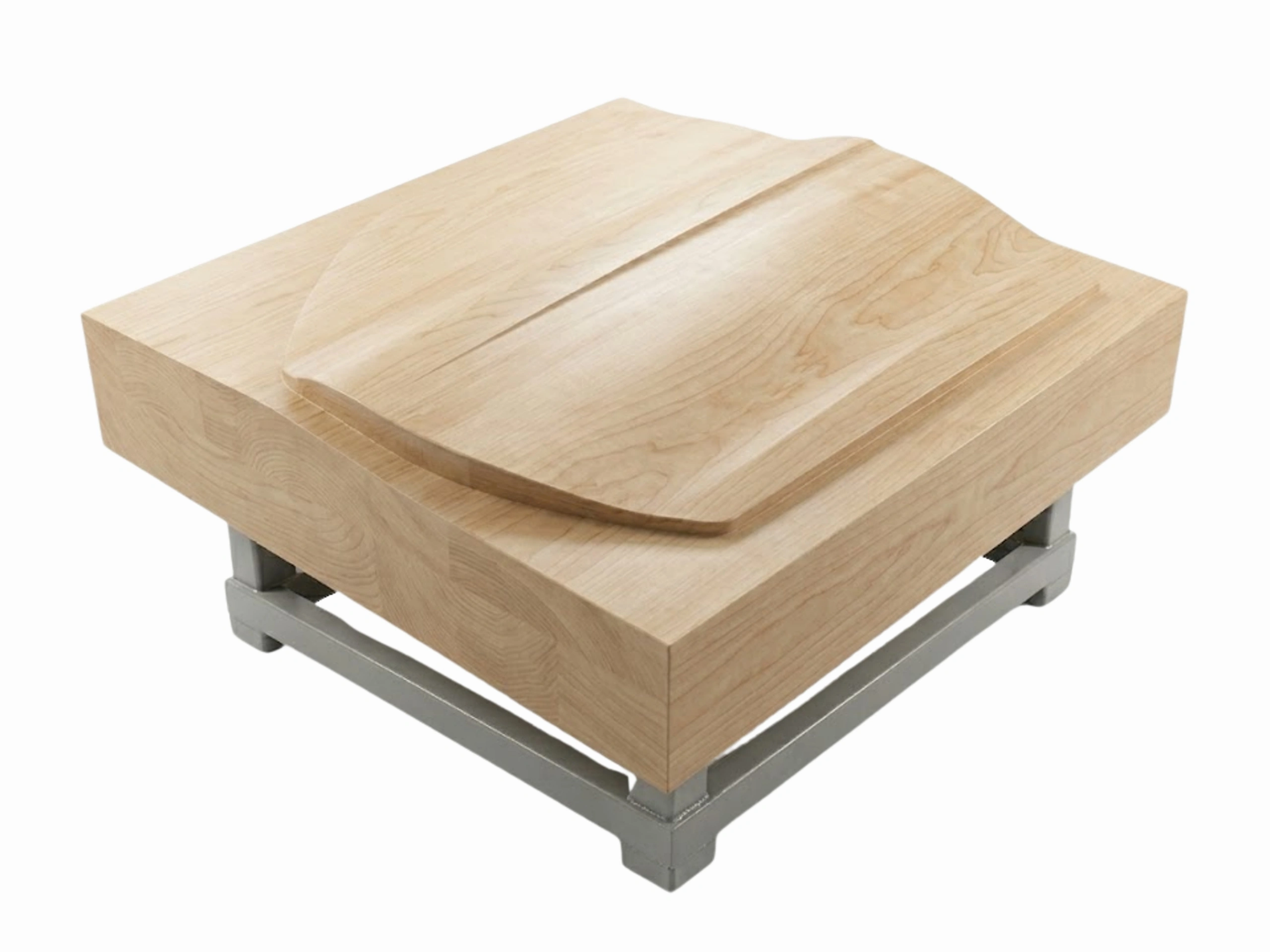

On the SF7050 (3-axis, non-metallic), parts up to 5,000 × 7,000 × 1,500 mm with table load to 17.5 tonnes. On the SF35120-5S (5-axis portal), part envelope reaches 11,000 × 2,500 × 1,600 mm — large enough for complete wind-turbine blade moulds, aerospace tooling masters and full-scale automotive prototype dies. For anything larger, our engineering team can scope a custom-gantry variant.
Why is the Stallion CNC Router platform superior to competitor offerings?

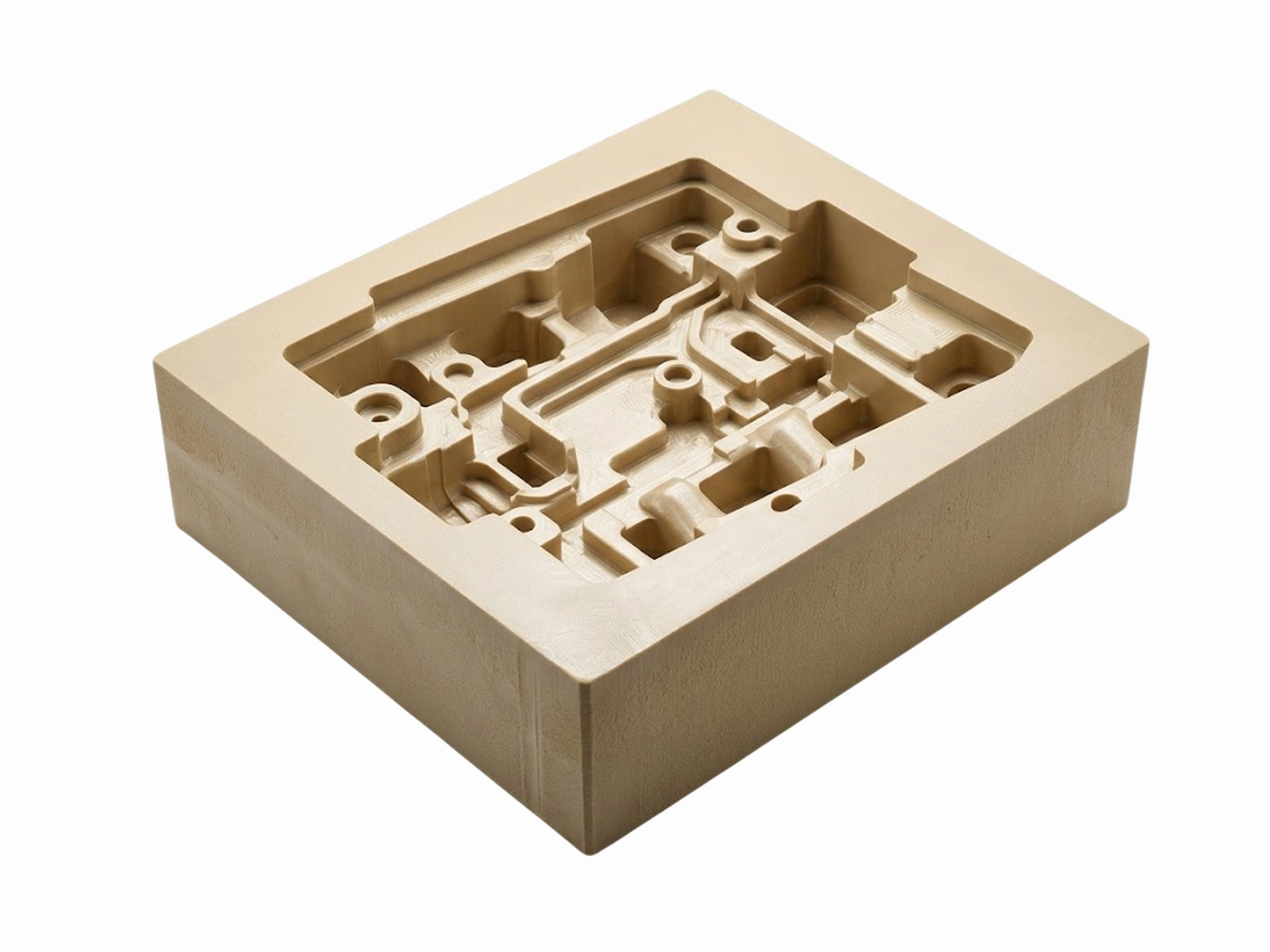

The three-series platform covers the complete foundry pattern and mould-making matrix on unified component standards — Italy HITECO HSK63F spindle on the 5-axis variants, Taiwan-built BT40 / BT50 mechanical spindles on 3-axis platforms, Taiwan linear guides throughout, and a choice of FANUC, Siemens or Syntec CNC. Z-axis hydraulic balance, pre-stretched ball screws and the constant-temperature drive system (SM) deliver foundry-grade thermal stability across long machining cycles. Critical components — spindles, ball screws, linear guides, CNC controls, servo drives — are built around internationally proven names across Italy, Japan, Germany and Taiwan for sustained accuracy and long service life.
