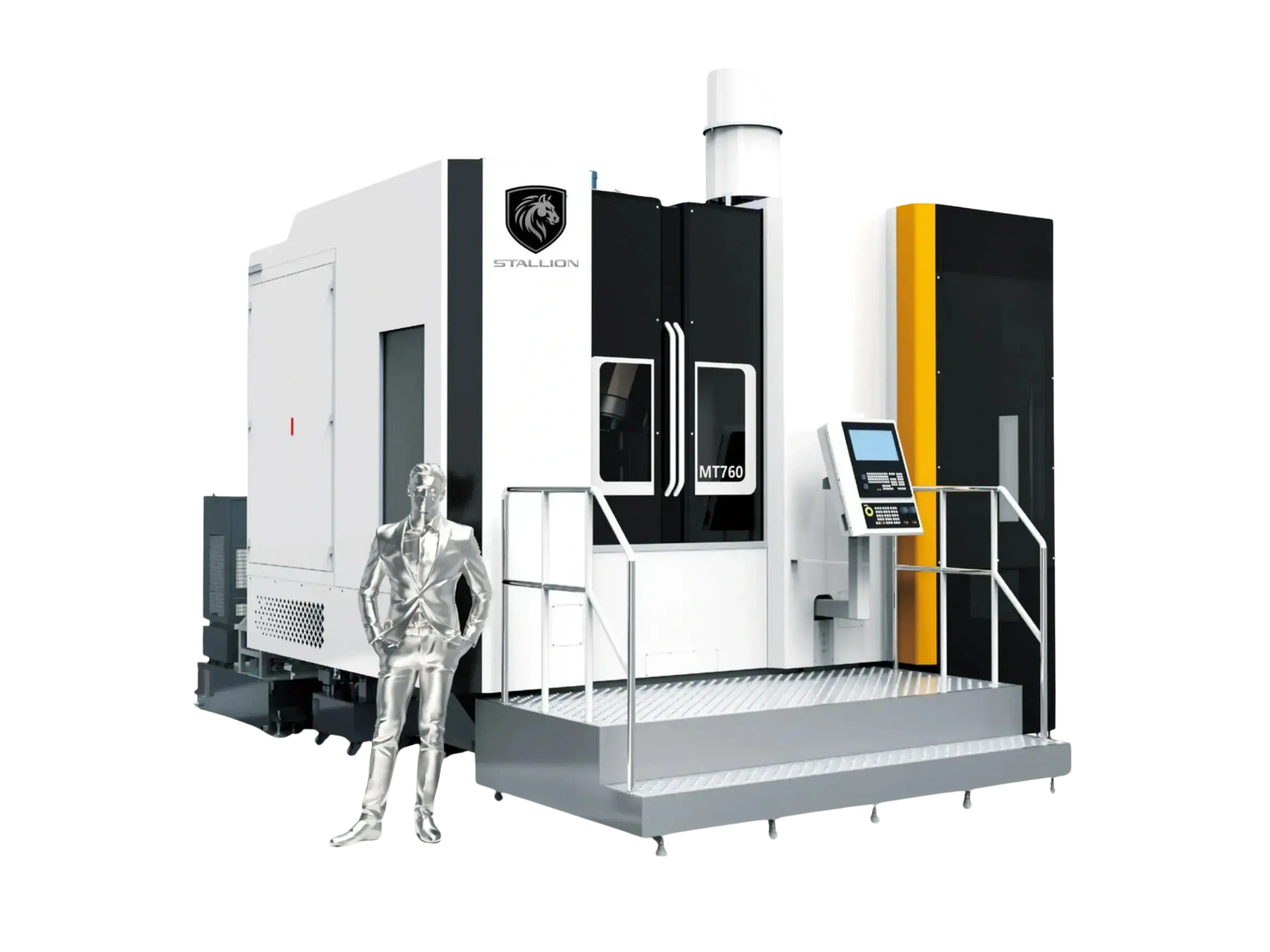

Multi-Tasking Machine (5-Axis Turn-Mill Centre)
Stallion MT Series — Every Operation. One Clamping. Zero Stack-Up.
Full Specifications
All MT Series Models
| Specification | MT760 | MT1000 |
|---|---|---|
| Max swing diameter (mm) | Ø950 | Ø1150 |
| Max cutting diameter (mm) | Ø850 | Ø1150 |
| Workpiece spindle / speed | Workpiece spindle / speed | A2-15 · 10–1,000 rpm |
| Workpiece spindle power (kW) | 31 / 37 | 39 / 48 |
| Tool spindle speed (rpm) | 6,000 (opt 12,000) | 6,000 (opt 12,000) |
| Tool spindle interface | HSK-T100 / CAPTO C8 | HSK-T100 / CAPTO C8 |
| Specification | MT760 | MT1000 |
|---|---|---|
| B-axis range / accuracy | +120° / -90° · 0.001° | +120° / -90° · 0.001° |
| Tool magazine / change time | 60 tools (opt 80/120/160) · 8 s | 60 tools (opt 80/120/160) · 8 s |
| X / Y / Z travel (mm) | 1,000 / 500 / 1,080 | 1,000 / 500 / 1,080 |
| X/Y/Z rapid traverse (m/min) | 24 / 24 / 24 | 24 / 24 / 24 |
| Repeat positioning X/Z (mm) | 0.004 | 0.004 |
| Machine weight (kg) | 28,000 | 36,000 |
| CNC system | Siemens 828D | Siemens 828D |
Standard Features Optional Equipment
Standard Features
- Movable double-column structure
- Three-axis linear guides (heavy-duty)
- Servo motor-driven lead screws (X/Y/Z)
- HSK-T100 tool spindle interface
- 60-tool chain magazine, 8-sec tool change
- B-axis built-in motor indexing (0.001°)
- Renishaw on-machine measurement
- Siemens 828D CNC control
- Multi-functional integrated cooling module
- Automated standard protection (stainless steel)
Optional Equipment
- 12,000 rpm tool spindle upgrade
- CAPTO C8 / C6 tool interface
- Expanded magazine (80 / 120 / 160 tools)
- Linear grating system (X-Z axis)
- Power angle head
- Gear skiving function
- Grinding mode kit
- Hydraulic chuck (15–18″)
- Workpiece probe / tool setter
- Customised fixture solutions
Typical Workpieces
Frequently Asked Questions
What is a multi-tasking machine?
A multi-tasking machine is a single-platform CNC machining centre that performs turning, milling, drilling, boring, tapping — and on some platforms grinding — on a workpiece in one clamping. By eliminating multiple setups across separate machines, it reduces handling time, tolerance stack-up between operations, work-in-progress inventory, and total cycle time for complex prismatic and rotational components.
What does single-clamping production mean and why does it matter?
Single-clamping production means the workpiece is fixtured once and every machining operation is completed without removing it from the machine. This eliminates two critical sources of cost and error: (1) the time and labour spent on re-fixturing between operations, and (2) the geometric tolerance stack-up that accumulates each time the part is re-clamped on a new machine. For complex valve bodies, multi-face automotive components and precision aerospace parts, single-clamping production typically delivers tighter geometric accuracy and 30–60% lower total cycle time than multi-machine routes.
What components are typically machined on the MT Series?

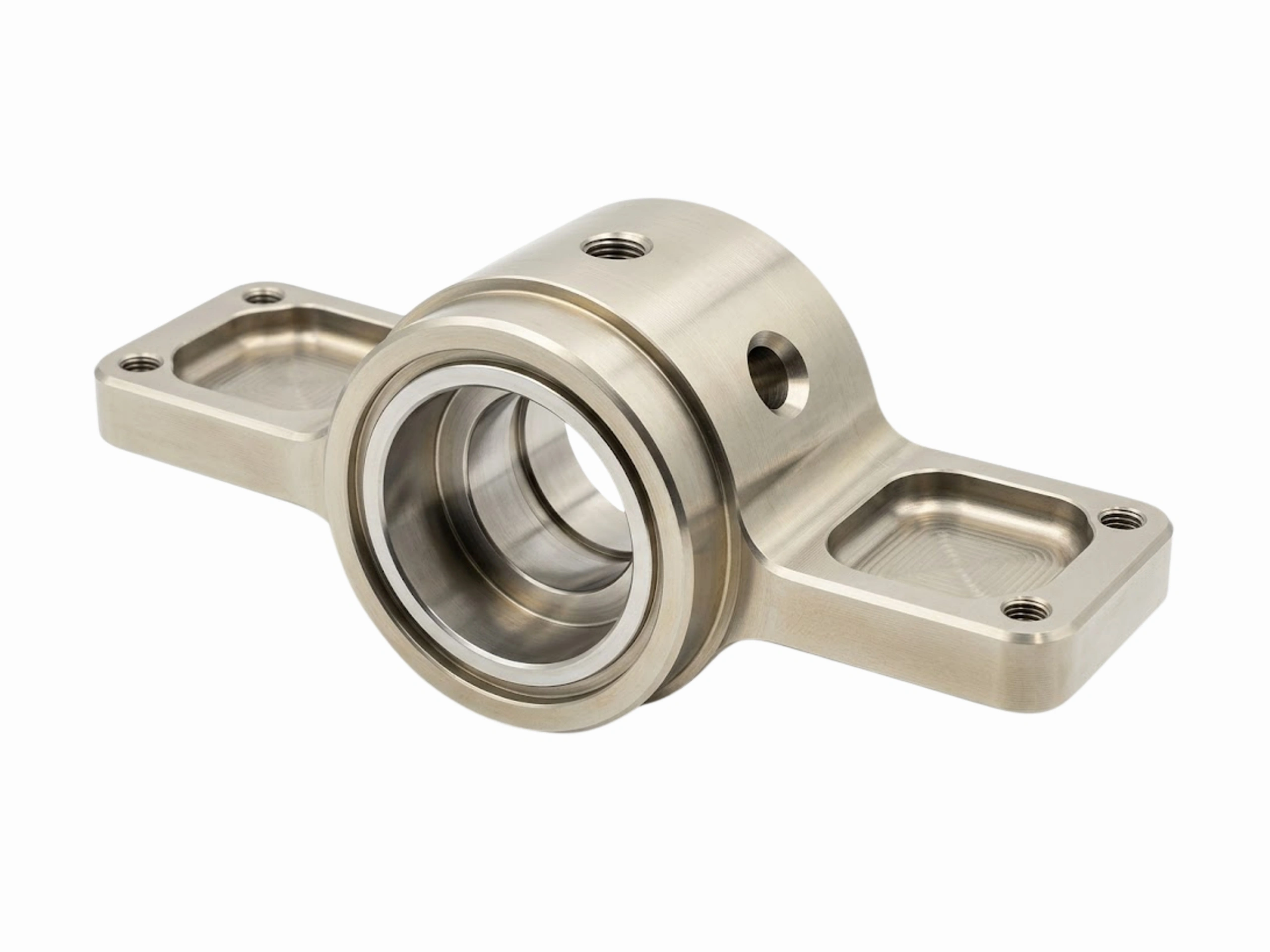

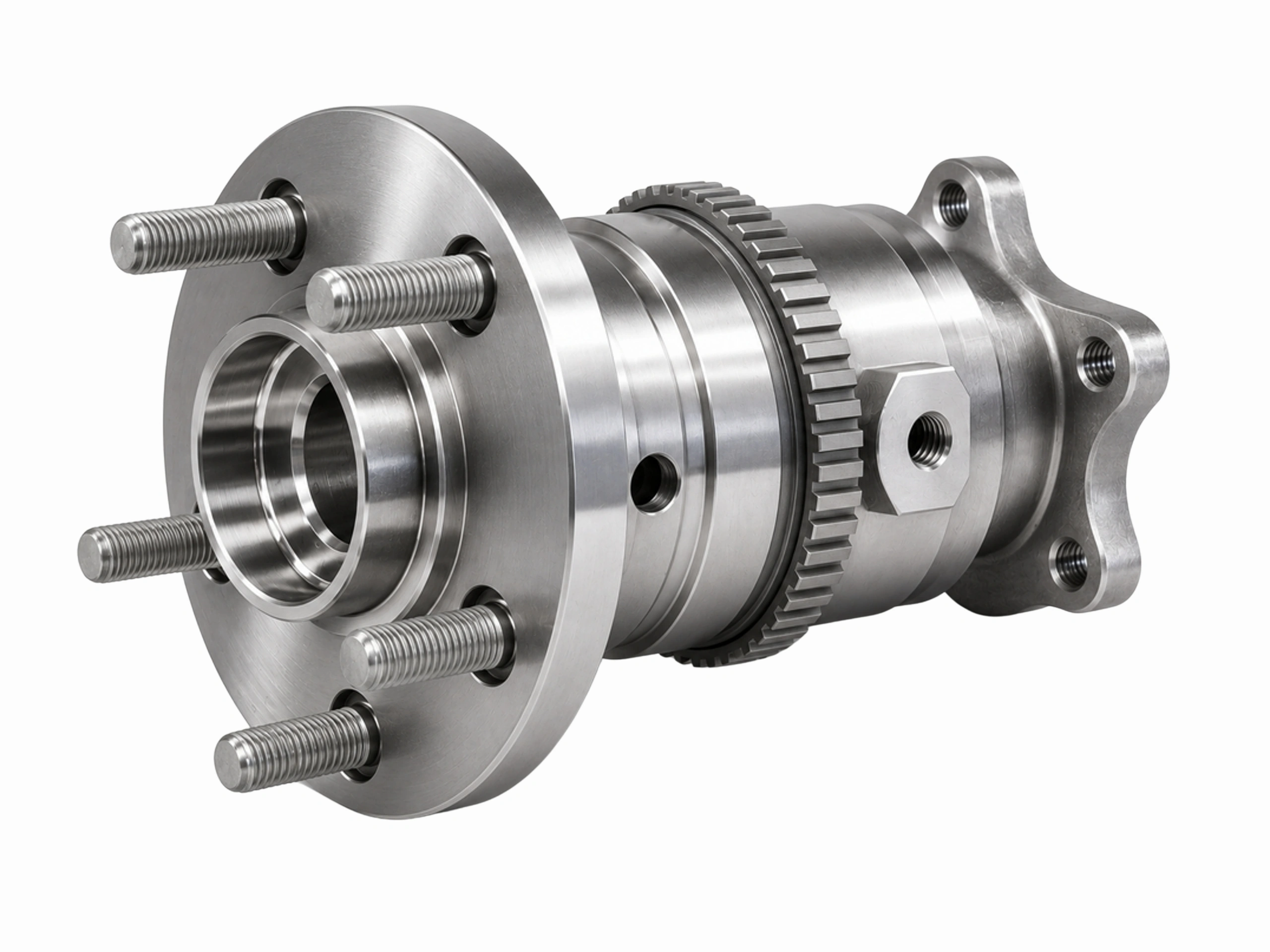

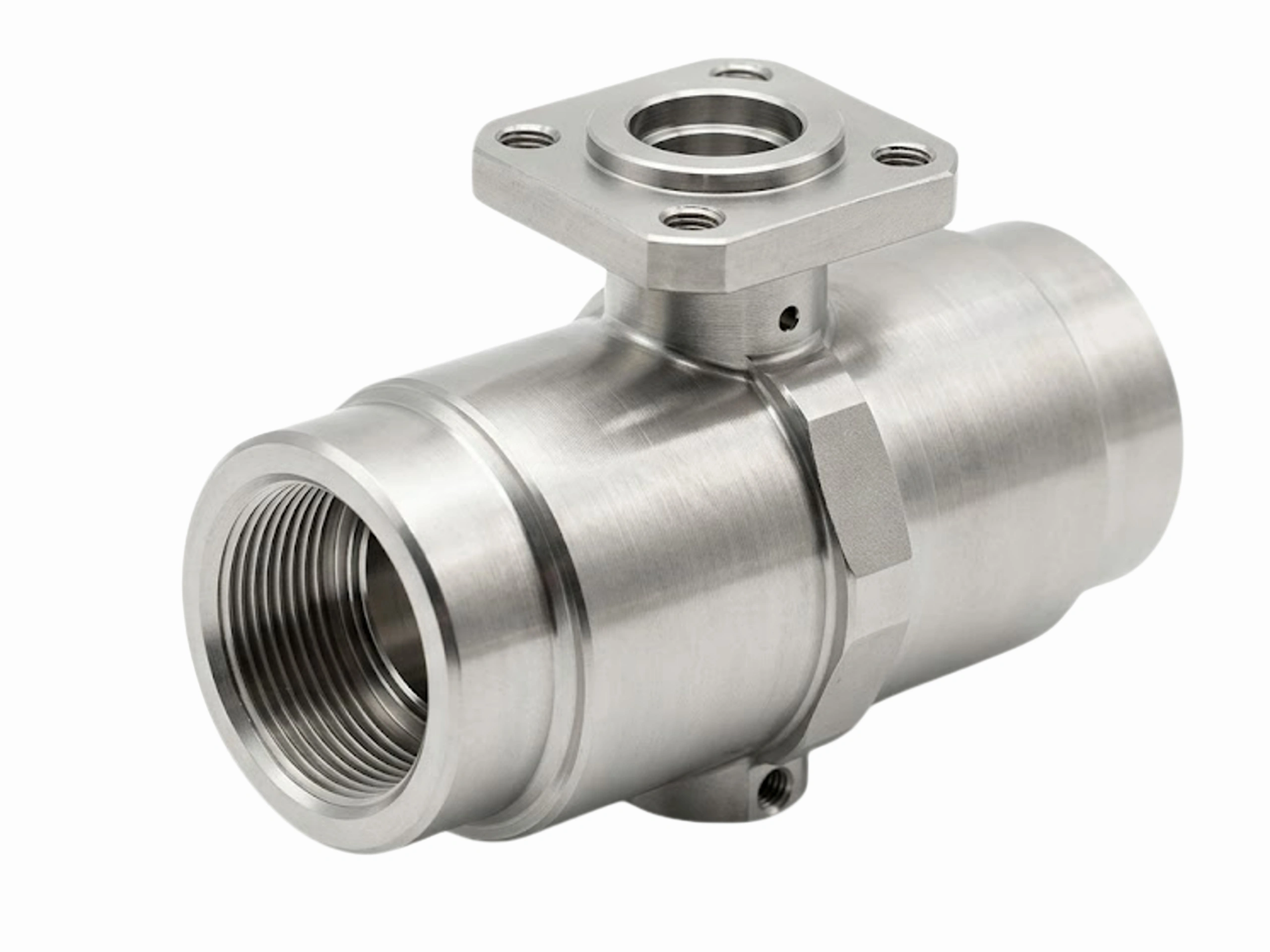

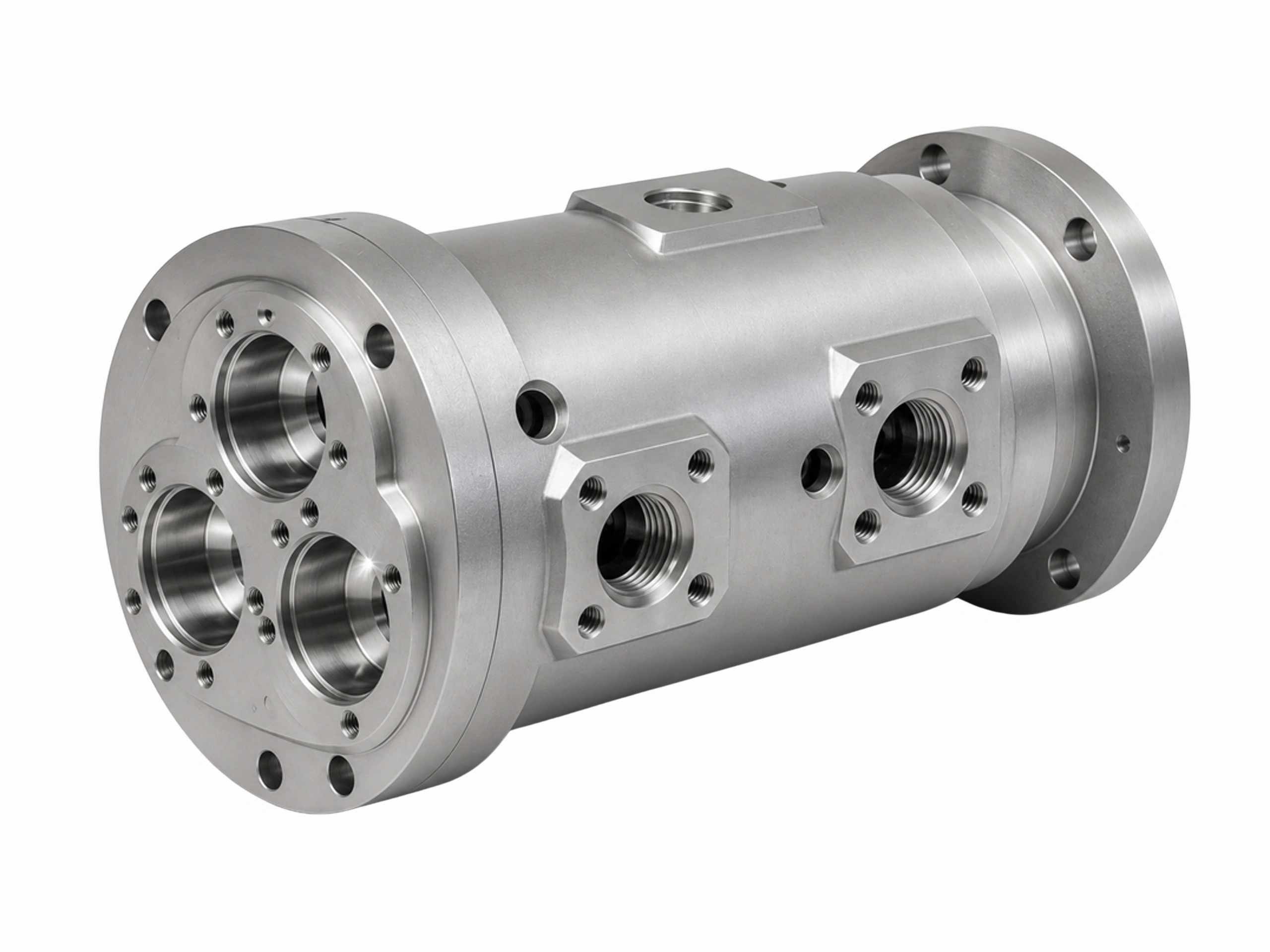

Valve bodies (gate, ball, control valves), automotive components (wheel hubs, knuckles, transmission housings), hydraulic manifolds and cylinder bodies, aerospace structural brackets and impellers, energy-equipment rotors and shafts, and any complex prismatic-rotational hybrid component where single-clamping production justifies a dedicated platform. The MT Series is configured to the customer's specific part family.
What is B-axis indexing and why does the MT Series use 0.001° accuracy?
The B-axis is the rotary tilt axis of the tool spindle, allowing the tool to approach the workpiece from virtually any angle. The MT Series uses a built-in motor B-axis with 0.001° (3.6 arc-second) indexing accuracy — fine enough for complex contoured surfaces, undercut features, and precise multi-face machining on valve and automotive components. The +120°/-90° angular range covers virtually every approach geometry encountered in single-clamping production.
Why is the Stallion MT Series superior to competitor multi-tasking machines?
The MT Series combines a movable double-column structure with three-axis linear guides, a high-rigidity HSK-T100 (or CAPTO C8) tool spindle with broach pulling force of 4,500 KG/F, and a built-in motor B-axis indexing to 0.001° — engineered specifically for single-clamping production of valve bodies, automotive components, hydraulic manifolds and aerospace parts. Tool spindles, B-axis drives, Renishaw on-machine measurement, Siemens 828D control and precision bearings are sourced from leading international suppliers across Germany, Japan, the UK and Europe for maximum quality and long-term accuracy.
