CNC Turning Centre (CNC Lathe / Turn-Mill)

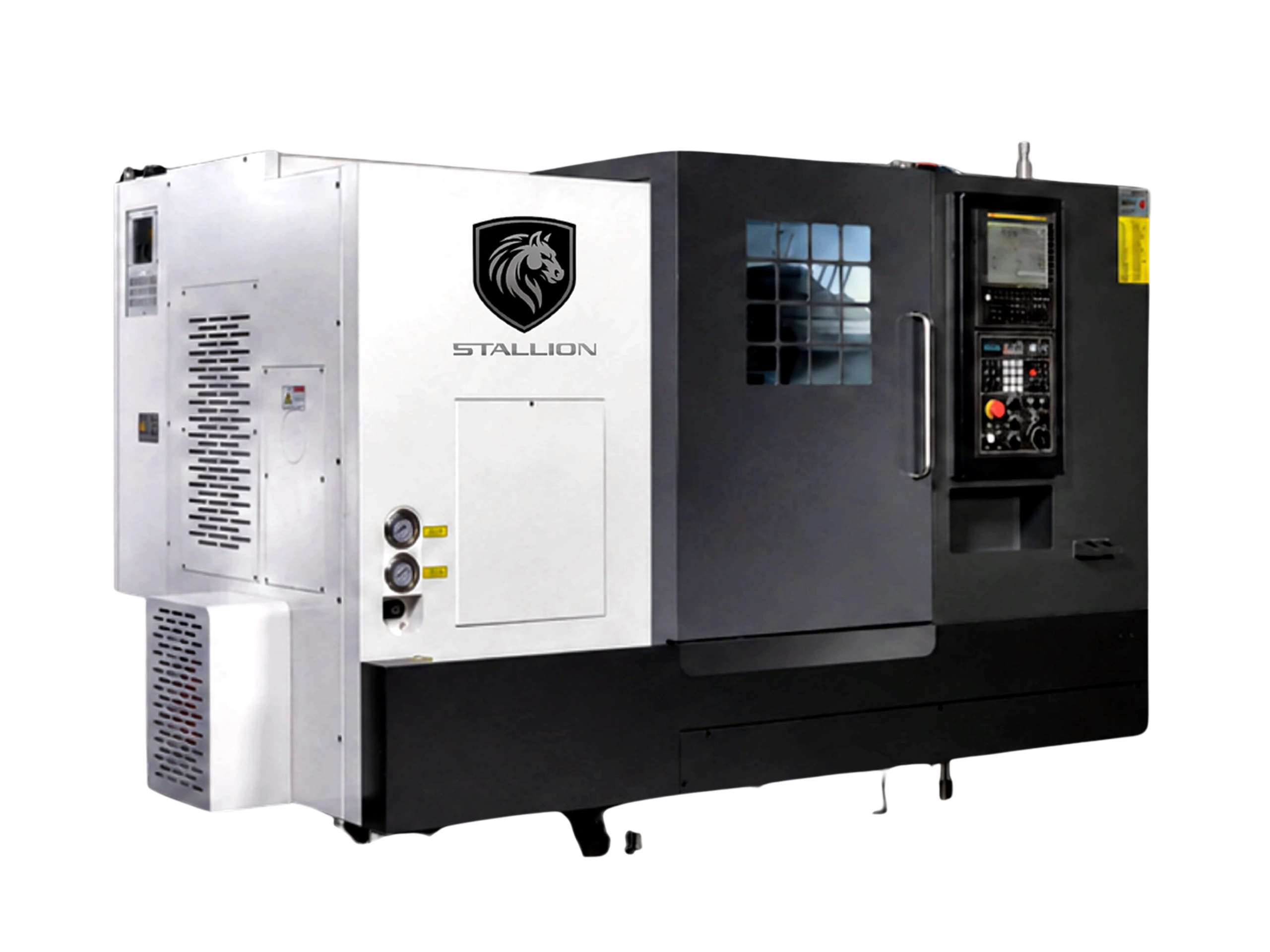

Stallion SL Series — High-Precision Automatic Turning
A CNC lathe rotates the workpiece against a stationary cutting tool to produce cylindrical, conical, threaded and contoured turned components — and the turn-mill variant adds driven tooling and optional Y-axis for combined turning and milling in a single setup. The Stallion SL Series is built on an integrated slant-bed structure with a 12-station servo turret, hollow hydraulic chuck, and chain-type chip conveyor — extending into driven tool, twin-spindle and Y-axis variants for complex part families
Technical Data
Full Specifications
Single-Spindle Models
| Specification | SL-210 | SL-210M | SL-300A | SL-300M | SL-400 | SL-400M |
|---|---|---|---|---|---|---|
| Max swing over bed (mm) | 510 | 510 | 570 | 570 | 790 | 790 |
| Max turning Ø (mm) | 320 | 235 | 460 | 400 | 600 | 550 |
| Max turning length (mm) | 500 | 450 | 640 | 550 | 1,500 | 1,500 |
| Bar diameter (mm) | 51 | 51 | 74 | 74 | 115 | 115 |
| Spindle speed (rpm) | 4,500 | 4,500 | 3,000 | 3,000 | 2,000 | 2,000 |
| Spindle interface | A2-6 | A2-6 | A2-8 | A2-8 | A2-11 | A2-11 |
| Main motor power (kW) | 11 / 18.5 | 11 / 18.5 | 15 / 18.5 | 15 / 18.5 | 15 / 18.5 | 15 / 18.5 |
| Turret | 12-stn | 12-stn driven | 12-stn | 12-stn driven | 12-stn | 12-stn driven |
| CNC system | FANUC / Siemens | FANUC / Siemens | FANUC / Siemens | FANUC / Siemens | FANUC / Siemens | FANUC / Siemens |
Twin-Spindle Models
| Specification | SL-300S | SL-300SY |
|---|---|---|
| Configuration | Twin spindle | Twin spindle + Y-axis |
| Max swing / turning Ø (mm) | 610 / 400 | 610 / 400 |
| Max turning length (mm) | 380 | 380 |
| X / Y / Z travel (mm) | 221 / — / 440 | 221 / ±50 / 440 |
| Spindle speed (rpm) | 4,000 / 5,000 | 4,000 / 5,000 |
| Spindle interface | A2-6 / A2-5 | A2-6 / A2-5 |
| Main motor power (kW) | 15 / 10 | 15 / 10 |
| Turret | 12-stn servo + hyd. clamp | 12-stn driven + Y-axis |
| CNC system | FANUC / Siemens | FANUC / Siemens |
Build & Equipment
Standard Features Optional Equipment
Standard Features
- Integrated slant-bed structure
- 12-station servo tool turret
- Hollow hydraulic chuck
- Hydraulic clamping
- Chain-type chip conveyor
- Centralised lubrication
- Coolant system with tank
Optional Equipment
- Driven-tool turret (M-series)
- Twin spindle (S-series)
- Y-axis (SY-series)
- Hydraulic tailstock
- High-pressure coolant
- Bar feeder / parts catcher
- Robotic loading/unloading
Applications
Typical Workpieces

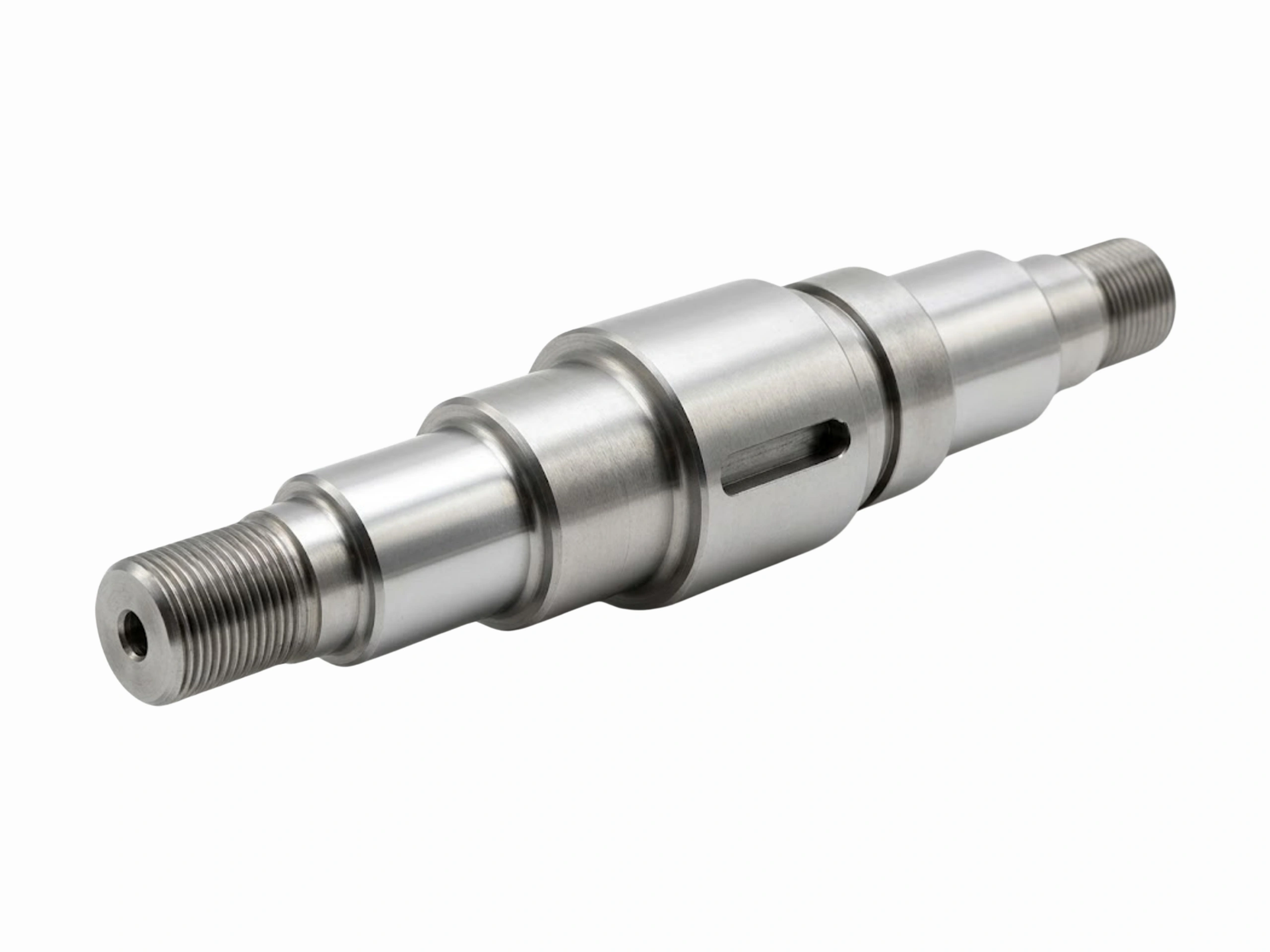

Shafts

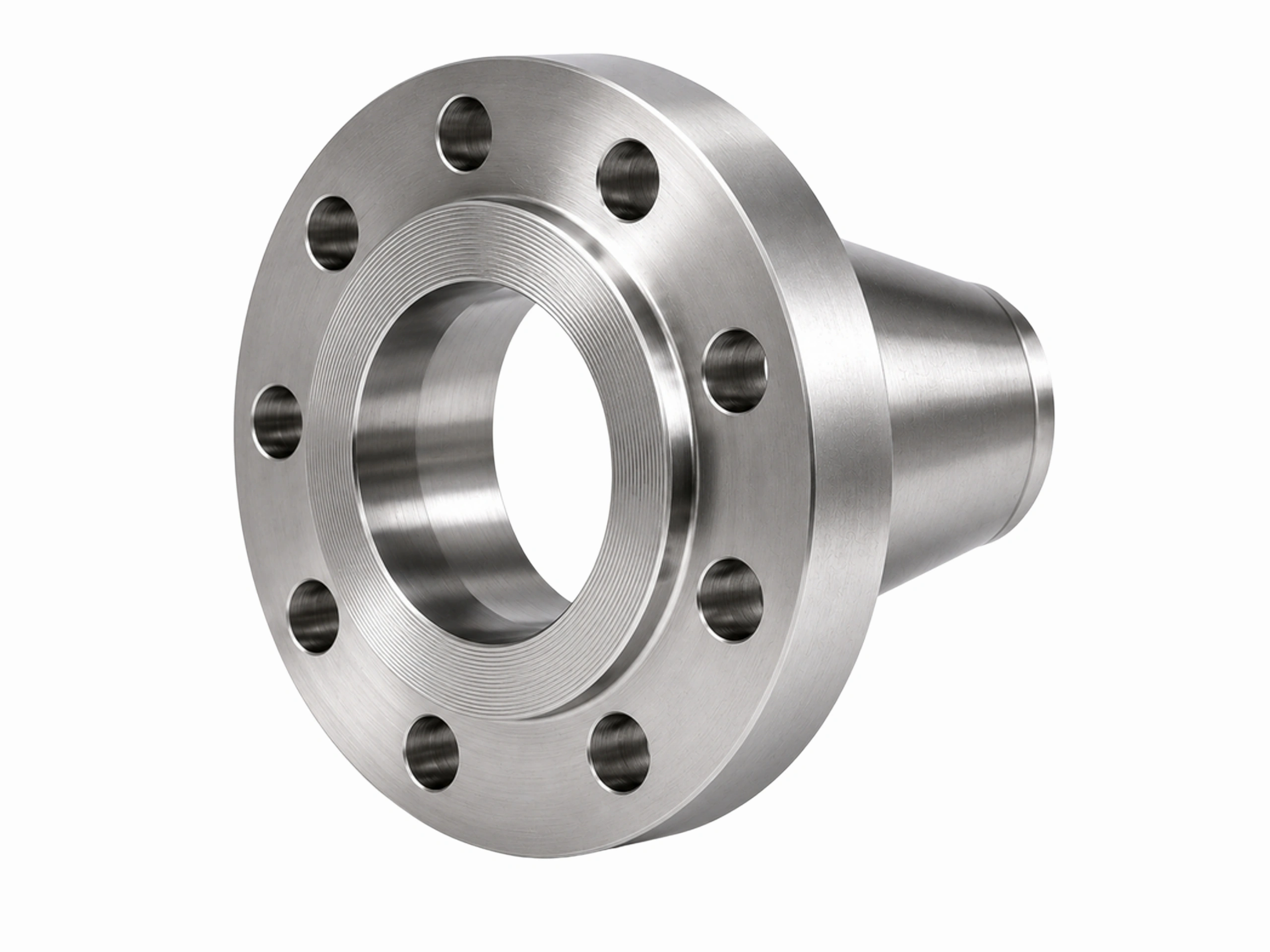

Flanges

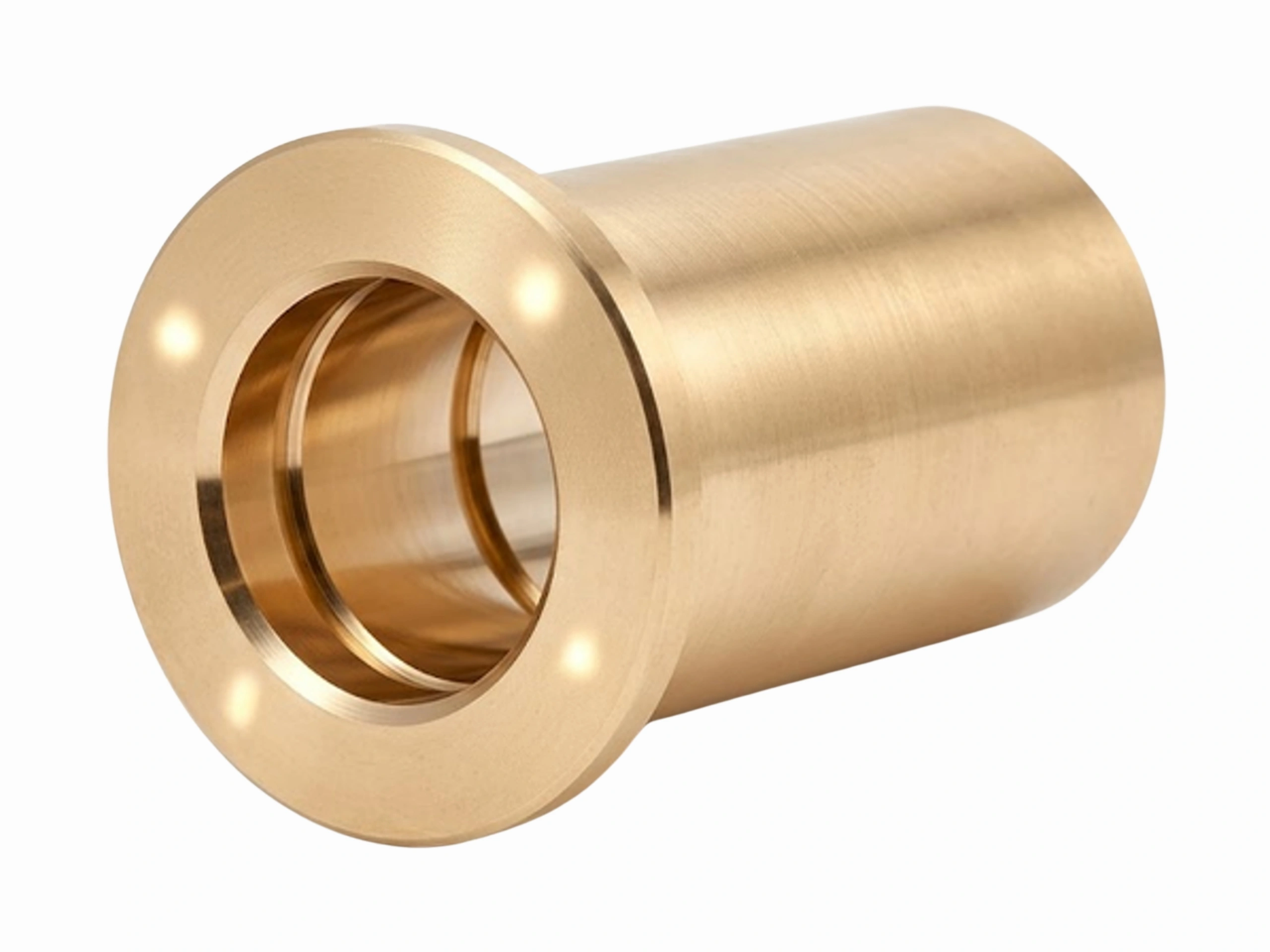

Bushings

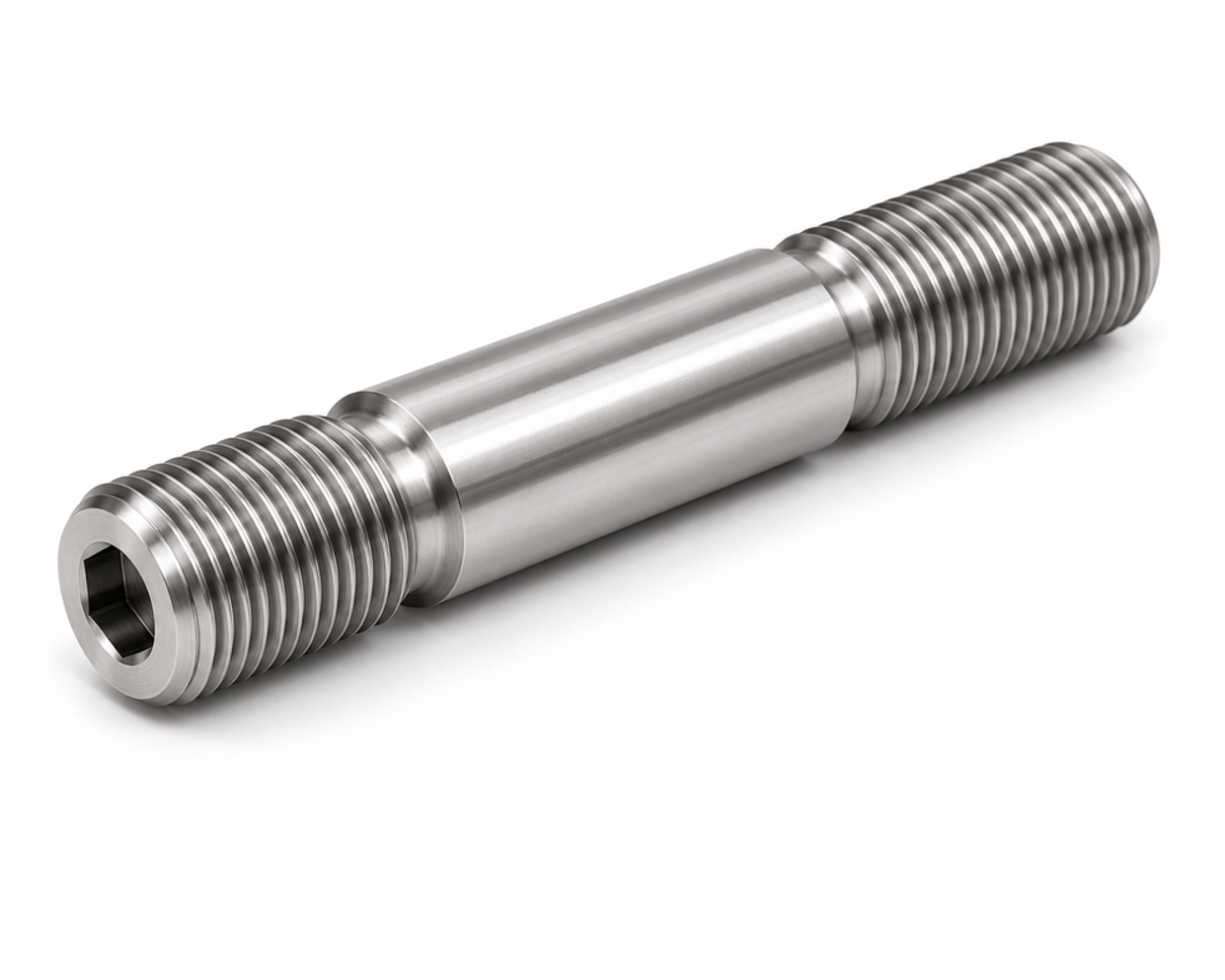

Threaded Components
Answers
Frequently Asked Questions
What is the difference between a CNC lathe and a turn-mill centre?
A CNC lathe rotates a workpiece against a stationary tool for cylindrical and contoured turning. A turn-mill centre adds driven tooling — small powered milling tools in the turret — and optional Y-axis movement, so milling, drilling and tapping operations
What is a slant-bed lathe and why is it preferred?
A slant-bed lathe has the bed and tool turret mounted on an inclined plane (typically 30°–60°). This orientation lets chips fall away by gravity into the chip conveyor — improving chip evacuation, keeping the cutting zone cooler, and supporting higher cut
What does 'driven tool turret' mean?
A driven tool turret incorporates powered tool stations in the turret — typically using BMT (Base Mounted Tool) interface — so milling cutters, drills, and taps can be driven independently while the main spindle is stopped or held at a C-axis position. Th
When should I choose twin-spindle or Y-axis configurations?
Twin-spindle (S-series) is preferred for components needing back-end machining without operator handling — the part is automatically passed from main to sub-spindle. Y-axis (SY-series) extends the driven turret with cross-axis travel, enabling off-centre
Why is the Stallion SL Series superior to competitor CNC lathes?
The SL Series is built on an integrated slant-bed structure with a 12-station servo tool turret, hydraulic chuck and chain-type chip conveyor — with optional driven tooling, twin spindle and Y-axis configurations that combine turning and milling in one cl
