Hwacheon CNC Horizontal Lathes in India
Hi-TECH · CUTEX · Big-Bore · Integrated Turn-Mill · Twin-Spindle
Full Specifications
CUTEX & Hi-TECH (Compact / Medium) — Horizontal Turning Centres
| Specification | CUTEX-160 | Hi-TECH 200 | Hi-TECH 300 | Hi-TECH 400 |
|---|---|---|---|---|
| Max Cutting Dia / Length [mm] | Ø300 / 300 | Ø350 / 401 | Ø380 / 800 | Ø380 / 750 |
| Through-Spindle Bore [mm] | Ø56 / 62 | Ø75 | Ø90 | Ø105 |
| Feed Speed X / Z [m/min] | 36 / 36 | 30 / 30 | 20 / 20 | 20 / 20 |
| Stroke X / Z [mm] | 170 / 335 | 195 / 430 | 280 / 845 | 280 / 820 |
| Spindle Motor [kW] | 11 / 7.5 | 15 / 11 | 22 / 18.5 | 22 / 18.5 |
| CNC System | FANUC / Siemens | FANUC / Siemens | FANUC / Siemens | FANUC / Siemens |

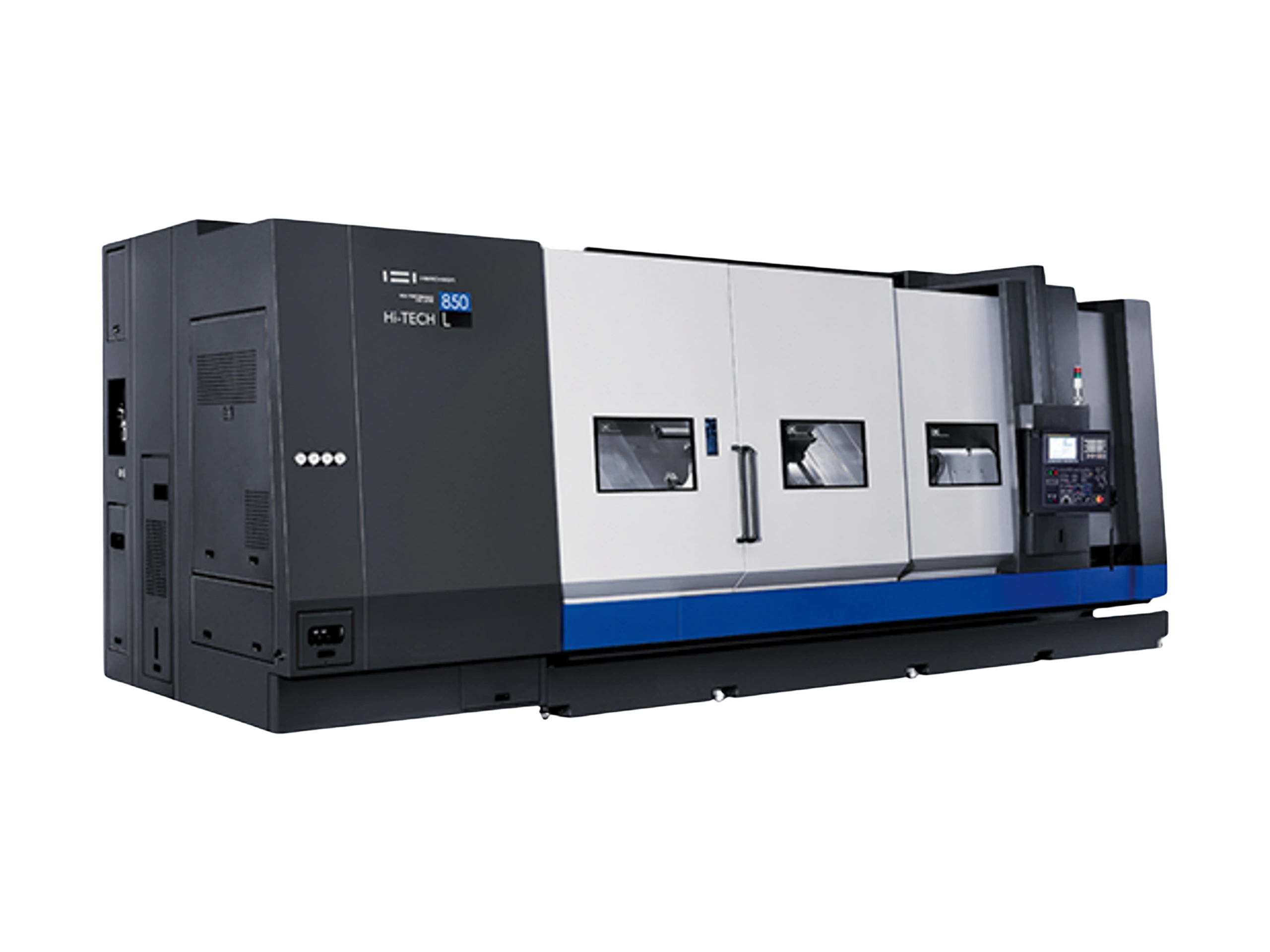

Hi-TECH (Medium / Heavy) — Horizontal Turning Centres
| Specification | Hi-TECH 450 | Hi-TECH 550 | Hi-TECH 700 | Hi-TECH 850 |
|---|---|---|---|---|
| Max Cutting Dia / Length [mm] | Ø420 / 760 (1,360) | Ø590 / 1,100 (2,150) | Ø700 / 2,000 | Ø920 / 2,500 (3,500) |
| Through-Spindle Bore [mm] | Ø90 / 105 / 132 | Ø132 | Ø132 | Ø185 |
| Feed Speed X / Z [m/min] | 20 / 24 | 20 / 24 | 18 / 18 | 10 / 12 |
| Stroke X / Z [mm] | 280 / 790 (1,290) | 345 / 1,150 (2,150) | 385 / 2,070 | 485 / 2,650 (3,650) |
| Spindle Motor [kW] | 22 / 18.5 | 30 / 22 | 37 / 30 | 45 / 37 |
| Y-Axis Option | Available | Available | — | Available (850L Y) |
Big-Bore Series — High Bar-Capacity Turning
| Specification | Hi-TECH 550BB | Hi-TECH 700BB | Hi-TECH 700BB+ | Hi-TECH 850BB+ |
|---|---|---|---|---|
| Max Cutting Dia / Length [mm] | Ø590 / 1,150 (2,150) | Ø650 / 2,050 | Ø650 / 2,050 | Ø920 / 2,650 (3,650) |
| Through-Spindle Bore [mm] | Ø185 | Ø185 | Ø300 | Ø300 / 375 |
| Feed Speed X / Z [m/min] | 20 / 24 | 18 / 18 | 18 / 18 | 10 / 12 |
| Stroke X / Z [mm] | 345 / 1,150 (2,150) | 360 / 2,050 | 360 / 2,050 | 485 / 2,650 |
| Spindle Motor [kW] | 37 / 30 | 45 / 37 | 45 / 37 | 45 / 37 |
Integrated Turn-Mill & Twin-Spindle Centres
| Specification | CUTEX-240 | T2 Series | HOT-3000 | i3 2500 | TTC-10 |
|---|---|---|---|---|---|
| Max Cutting Dia / Length [mm] | Ø380 / 680 | Ø460 / 444 | Ø330 / 600 | Ø660 / 1,575 | Ø400 / 230 |
| Through-Spindle Bore [mm] | Ø75 / 90 | Ø76 | Ø120 | Ø91 | Ø77 |
| Feed Speed [m/min] | 36 / 36 | 30 / 30 / Y:15 | 15 / 18 / Y:6 | 40 / 30 / Y:30 | 30 / 30 |
| Spindle Motor [kW] | 18.5 / 15 | 15 / 11 | 7.3 | 22 / 15 | 18.5 / 15 |
| Feature | Turn-Mill | X1 / X2 / Z1 / Z2 / Y / B | Turn-Mill Compact | Turn-Mill Premium | Twin-Spindle |
Standard Features Optional Equipment
Standard Features
- Solid box guide ways across all axes
- Gear-driven four-speed spindle transmission
- Oil-Jet spindle bearing cooling
- Hydraulic chuck clamping
- HSDC machining software suite
- Multi-axis interlock safety
- Coolant filtration and collection
Optional Equipment
- Y-axis (Hi-TECH 450 / 550 / 850 series)
- Live tooling for milling-on-lathe
- B-axis swivel head (T2 series)
- Bar feeder
- Sub-spindle (TTC-10 standard)
- Parts catcher / unloader
- Tool / workpiece probe
- FANUC / Siemens / Heidenhain controller choice

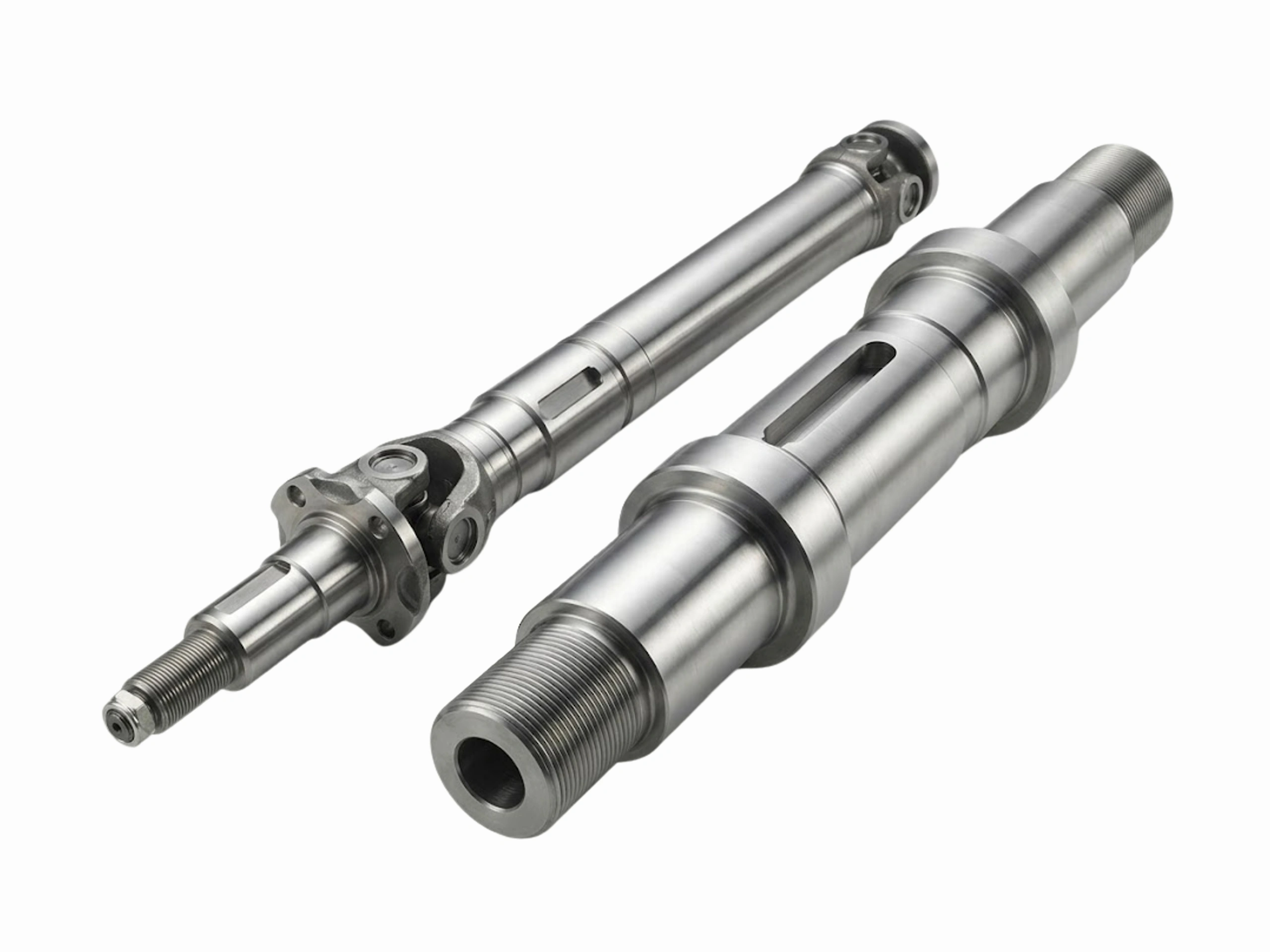

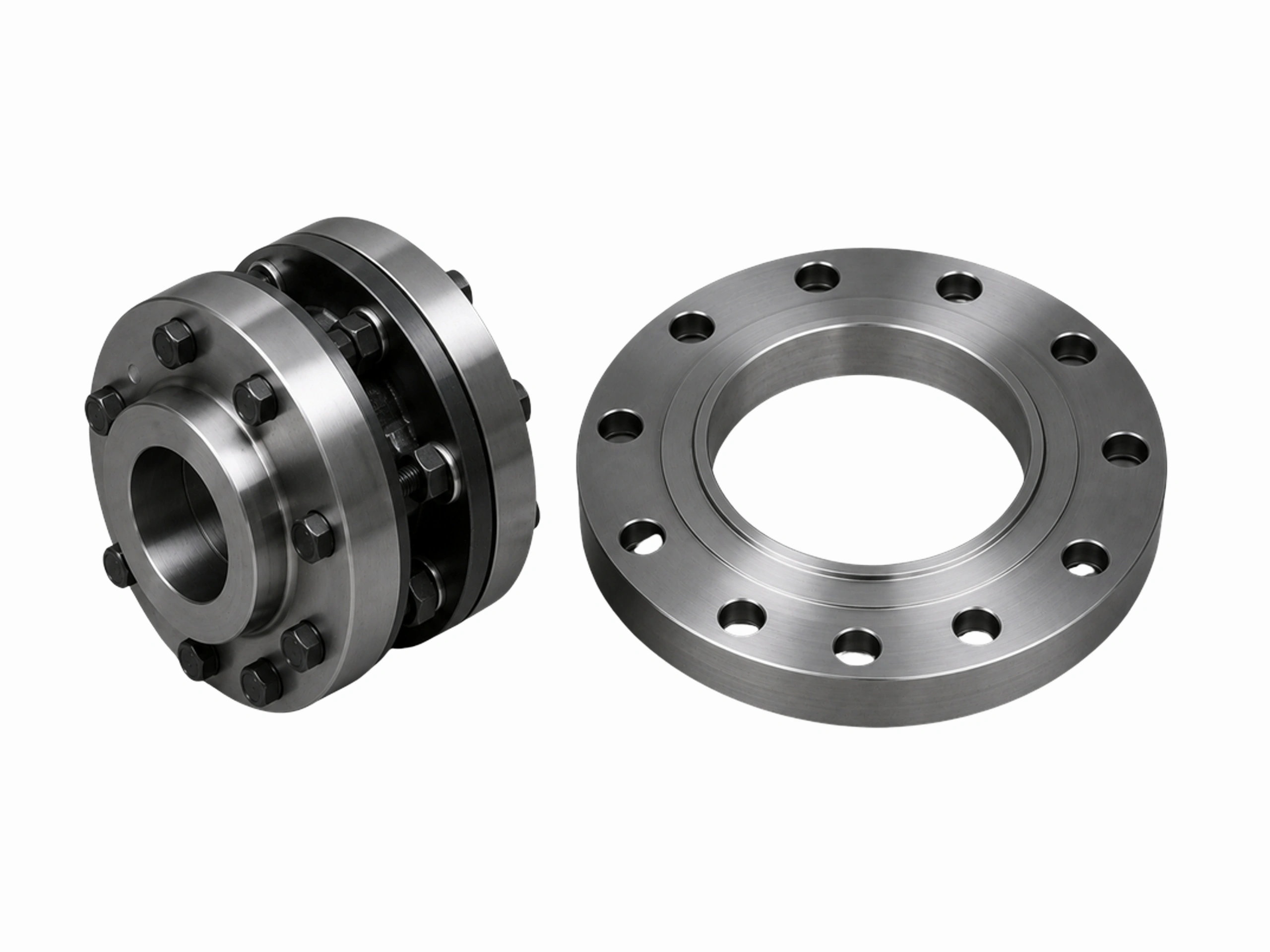

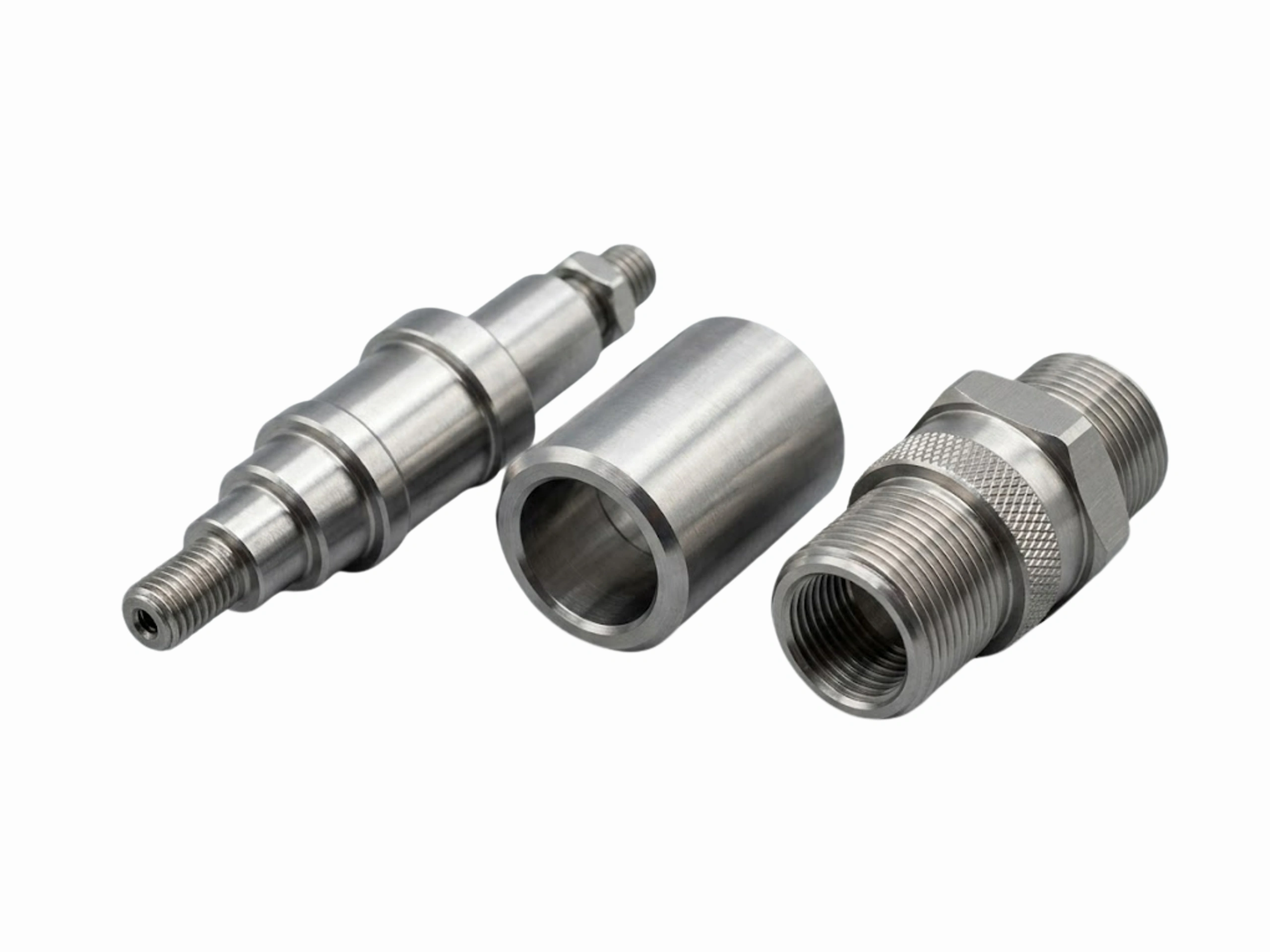

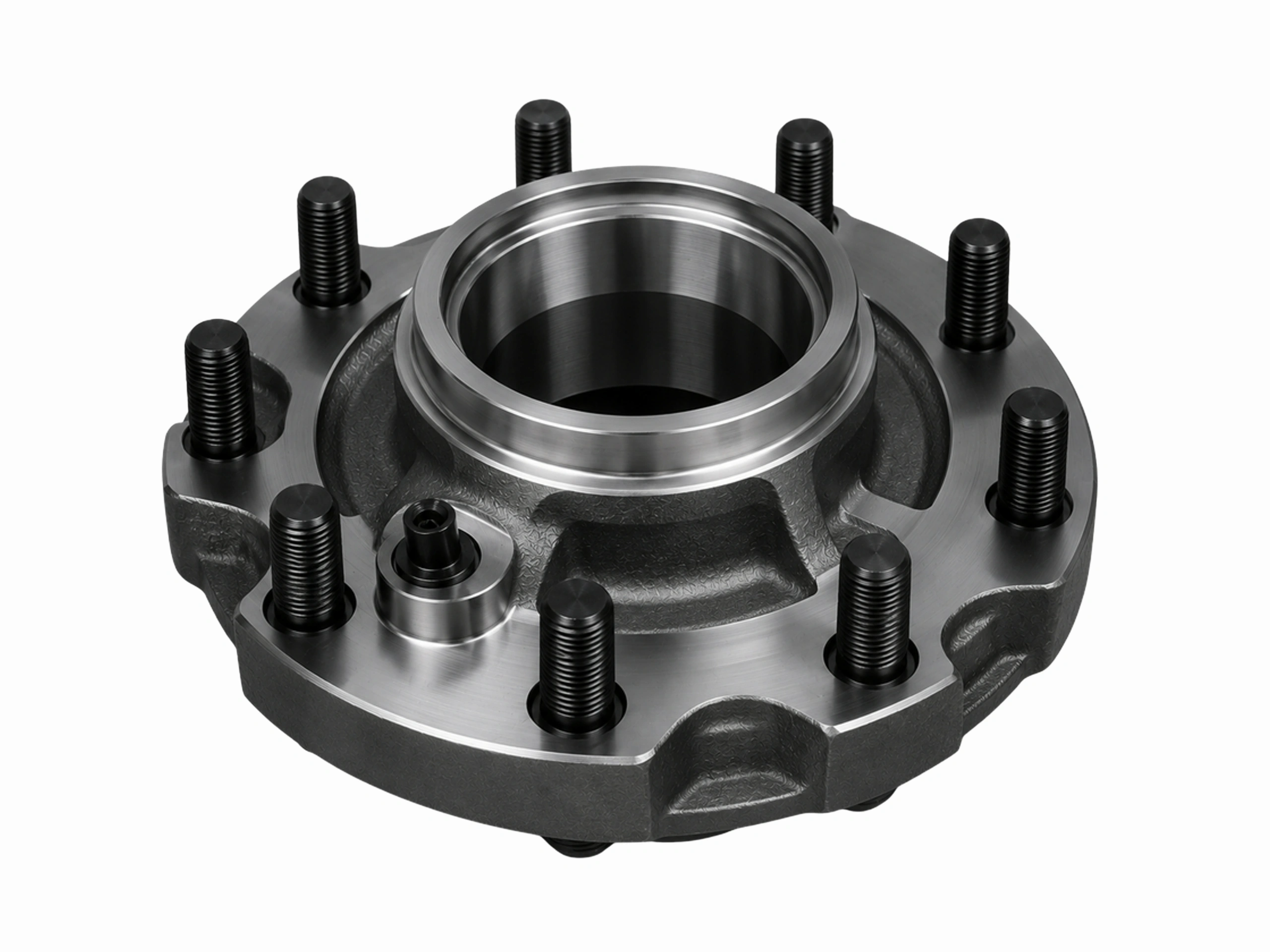

Typical Workpieces
Frequently Asked Questions
Where in India are Hwacheon CNC horizontal lathes most deployed?
Hwacheon CNC horizontal lathes (Hi-TECH, CUTEX, Big-Bore, T2 turn-mill, TTC twin-spindle) are deployed across India's major industrial clusters: automotive powertrain in Pune, Chennai, Coimbatore, Aurangabad, and Manesar; pump and shaft producers in Coimbatore (India's pump capital); oil-country tubular goods suppliers in Vadodara and Mumbai; defence-PSU ecosystem in Pune, Hyderabad, and Avadi; and precision job shops nationwide. Stallion installs and services from our Coimbatore headquarters.
What is a Hwacheon CNC Horizontal Lathe?
A horizontal lathe / turning centre rotates a cylindrical workpiece around a horizontal axis while the tool performs turning, facing, boring, threading and (with live tooling) milling and drilling operations. The Hwacheon range covers compact production turning (CUTEX-160, Hi-TECH 200 / 300 / 400), medium-heavy production (Hi-TECH 450 / 550), heavy turning (Hi-TECH 700 / 850), big-bore turning (Hi-TECH BB series for tubular goods and large shafts), integrated turn-mill (T2, HOT, i3 with B-axis and Y-axis), and twin-spindle (TTC-10).
What is the Big-Bore series and what is it used for?
The Hwacheon Hi-TECH BB series — 550BB(L), 700BB / BB+, 850BB / BB+(L) — features enlarged spindle bores (up to Ø375 mm) for bar feeding and clamping of large-diameter tubular workpieces and shafts. Typical applications include oil-country tubular goods (OCTG), large hydraulic cylinder bodies, mill rolls and large industrial shafts. Stallion has supplied and supported Hi-TECH BB machines in India for over twenty-five years.
What is an integrated turn-mill, and which Hwacheon models offer it?
Integrated turn-mill machines combine turning with milling capability on the same machine — typically via a B-axis swivelling tool spindle and a Y-axis. This enables a complete part to be produced in a single setup, eliminating multiple clampings and reducing cycle time. Hwacheon offers integrated turn-mill in the T2 series (X1/X2/Z1/Z2/Y/B configurations), HOT-2000 and HOT-3000, and the premium i3 2500.
Does Stallion provide application engineering and service for Hwacheon horizontal lathes in India?
Yes. Stallion has supported Hwacheon horizontal lathe installations across India for over twenty-five years. We provide pre-sale machine selection, application engineering for specific workpieces, installation and commissioning, operator and programmer training, and ongoing service. Spare parts are stocked at our Coimbatore facility.
Why is the Hwacheon CNC horizontal lathe superior to competitor turning centres?
Every Hwacheon horizontal lathe is built around solid box guide ways across all axes — maintaining rigidity and precision during continuous production. The gear-driven four-speed spindle with high-performance gear decelerator provides high torque at low speed for roughing heavy workpieces, and high speed for finishing. The bearing assembly is cooled and lubricated by Hwacheon's unique Oil-Jet cooling system, with gearbox temperature regulated by oil circulation — ensuring consistent spindle performance over long cuts and across years of operation. This combination is why Hwacheon horizontal lathes in Indian production today still produce parts to the same tolerance as when they were commissioned years ago.
